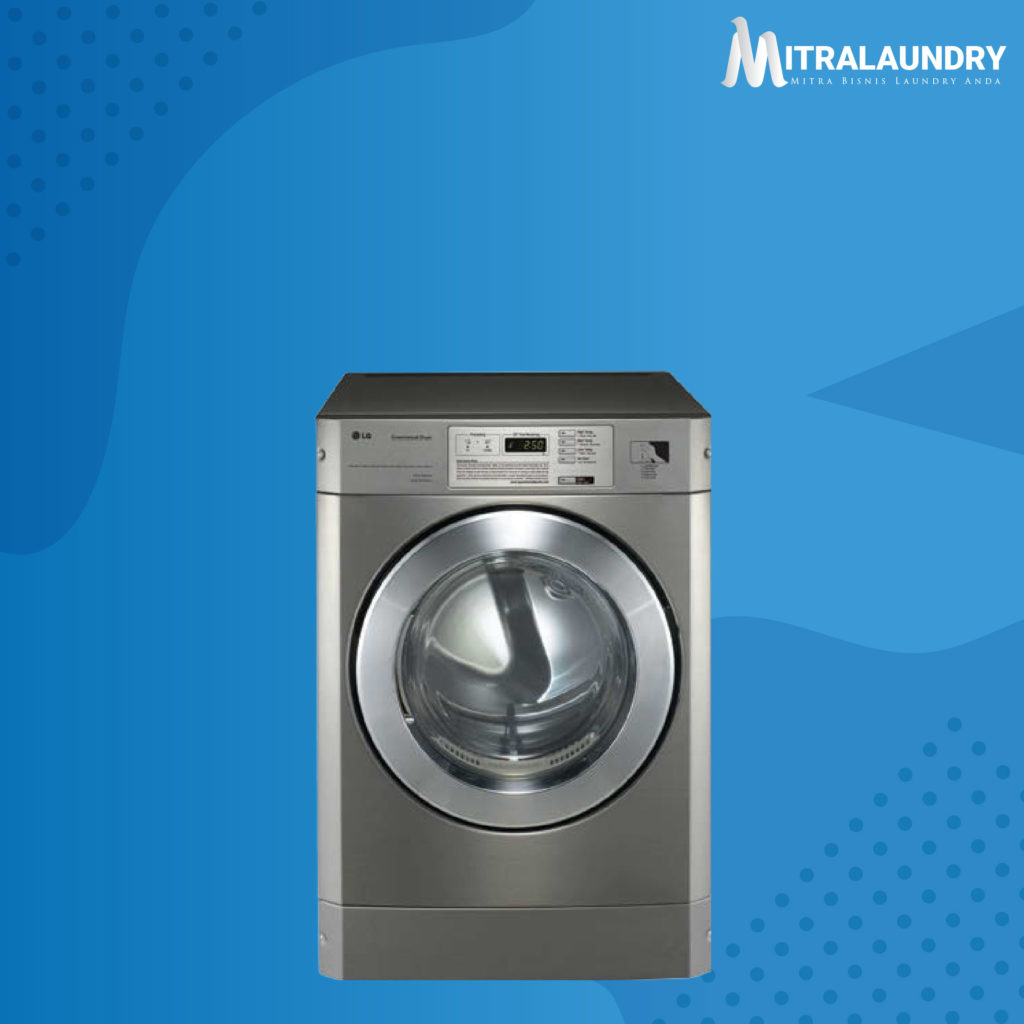

LG GIANT C+ Dryer (Non-Coin)

LG GIANT C+ FEATURES

• Installation Flexibility

Install your laundry to meet your needs and space with side by side or stack configuration. Easy to bring and reinstall your products even though you move to new house.

• Easy Sliding System

The Easy Sliding System allows for quick and easy maintenance. The innovative sliding mechanism enables you to service the down stack without having to completely remove the upper stack. By sliding the upper stack equipment, it is easy to access important parts in both the upper and lower stack. *Washer & Dryer Stack Only

• AdaptAble™ Controls

AdaptAble™ Controls provide the space saving and convenience without compromising capacity while retaining easy to reach controls. The controls are always at a convenient height and are versatile enough to match your needs.

•  Dual Lock System

LG’s double locking system for the front panel and coin vault access provides increased security. *Coin Washer & Dryer Stack Only *Model : F1069FDP, RN1329AN1, RV1329AN1, GCWP1069QD, GD1329QGD, GD1329QED    DURABILITY

• Inverter Direct Drive™

Unlike the traditional belt and pulley, the LG Commercial Laundry drum is directly attached to the motor providing superior durability and reliability. Less parts equal less repairs.

• Premium Powder Coated

Our powder coated finish creates the same durability as it does when painting a car. It is sure to last long and provide an easy to clean exterior.

• Top-mounted Dispenser

No worries about detergent spilling from a soap drawer down the front of this machine. The LG top mounted soap dispenser makes it easy to keep things clean.

• Multiple Damper Vibration Reduction

Multiple dampers absorb vibration and reduce noise creating a quieter washing environment.

• Steel Control Panel

The front access panel is constructed of strong coated steel – not plastic, to enhance reliability and provide an important security barrier for the coin box and vault as well as the machine control assembly.

• Stainless Steel Drum for Washer

The stainless steel drum helps prevent clothes from staining or damages during the wash cycle.   EFFICIENCY

• Energy Saving

The tempered glass door is less susceptible to breakage and scratching, while the transparent cover allows for easy viewing.

• Space Saving

The small cabinet size with bigger washing capacity and stackable design allows more customers and more machines in limited space.

• Atomizing System

The Atomizing nozzle sprays fresh water onto the clothes and the door. This helps produces a rapid fill so clothes are soaked sooner and longer providing a better washing performance. It also cleans the door glass every time the water sprays on it, reducing your burden of cleaning any excess soap residue.

• Optimized Washing System

When an LG Commercial Washer detects over-suds during a washing cycle, it moves into a suds reduction process which delivers a better washing performance.

• 10° Tilted Drum

LG’s Commercial Washer tub is tilted at 10°. It enables the washer to have a higher level of water in the tub than the competition. This allows us to use less water while not sacrificing superior washing performance.

• Embossed Inner Drum

The surface of the embossed inner drum increases the amount of contact with fabric. This creates better washing action and helps remove more dirt and stains.

• Tub Cleaning System

A dirty tub from hours of long operation can affect washing performance. Our tub cleaning program helps you keep a clean tub even in the busiest locations.   CONVENIENCE

• Tub Cleaning System

A dirty tub from hours of long operation can affect washing performance. Our tub cleaning program helps you keep a clean tub even in the busiest locations.

• Easy Programming

Intuitive programming controls allow operators to choose from a variety of functions and programs, including price, cycle time, cycle parameters, spin-speed and more, ensuring that all washing requirements are met.

• Multilingual Readout

Our mission is to make customers happy and enjoy doing laundry with LG Commercial machines. Easy to read directions in multiple languages.

• Reversible Door for Dryer

The direction of the door swing can be easily changed to the customer’s preference, left or right, with no additional parts required.   TECHNICAL SPECIFICATION

Category	Measure	Washer (Non-Heater)	Washer (Heater)	Dryer (Gas)	Dryer (Electric)
Drum Volume	cu.ft (l)	3.6 (102.7)	3.6 (102.7)	7.3 (207)	7.3 (207)
Capacity	lb (kg)	22.5 (13)	22.5 (10.2)	22.5 (10.2)	22.5(10.2)
Dimensions (WxHxD)	in. (mm)	27x38.7x30.2 (686x983x767)	27x38.7x30.2 (686x983767)	27x38.7x30.1 (686x983x764)	27x38.7x30.1 (686x983x764)
Electric Ratings	V/Hz/A	120/60/5 220~240/50/5 220/60/5	220~240/50/15~17.5	120/60/5 220~240/50/2.4 220/60/3	120(240)/60/26 220~240/50/22.5 220/60/21 240/50/19.5
Inverter Direct Drive Motor	-	O	O	-	-
Intelligent Electronics Controls	-	O	O	O	O
Heating System	W	-	3,600	-	-
Pricing Program	-	Special Vended Price	Special Vended Price	Special Vended Price	Special Vended Price

Operation

Category	Measure	Washer (Non-Heater)	Washer (Heater)	Dryer (Gas)	Dryer (Electric)
Wash Speed	RPM	50	50	-	-
Extract Speed (High)	RPM	1,150	1,150	-	-
G-force	G	413	413	-	-
Water Consumption	gal (l)	13.4 (50.8)	13.4 (50.8)	-	-
Noise Level (Sound Power)	dB	Lower than 62	Lower than 62	-	-
Program Duration in Minutes (Default)	min	36	60 (60℃ Program)	-	-
PCB Fuse - Main Control Board	V/amps	220~240/8 120/12	220~240/8	-	-
PCB Fuse - Filter Assembly	amps	15	15	-	-
Heating Type	-	-	-	Gas	Electric
Type of Drying	W	-	-	Ventilation	Ventilation
Air Flow	CFM	-	-	160	160
Motor	V/Hz/KW	-	-	120/60/0.4 220~240/50/0.3 220/60/0.4	120/60/0.4 220~240/50/0.3 220/60/0.4
Gas Ratings	KW/BTU	-	-	5.8/20,000	-
Heating Element	W	-	-	-	5,400*
