FEATURES
MICROPROCESSOR CONTROLS
• Provides simple programming options for owner: including adjust ablecycle price, cycle time, diagnostics and vend count.
• Easy one-touch cycle selection for customers.
TURBOVENT ™ DRYER TECHNOLOGY
• Additional blower wheel provides exceptional performance in long vents.
•High airflow reduces dry time.
PORCELAIN-ENAMEL TOP
• Durable finish for high-use environments
CLOTHESPIN™APP BY MAYTAG COMPATIBLE
• Customers will love how convenient it is to do their laundry with the new Clothespin™ app by Maytag.
• They can use their smartphones to payfor their laundry, remotely check foravailable washers and dryers, and receive a notification when their laundry cycles are complete.*
5-YEAR LIMITED WARRANTY
• All parts are covered for 5 year

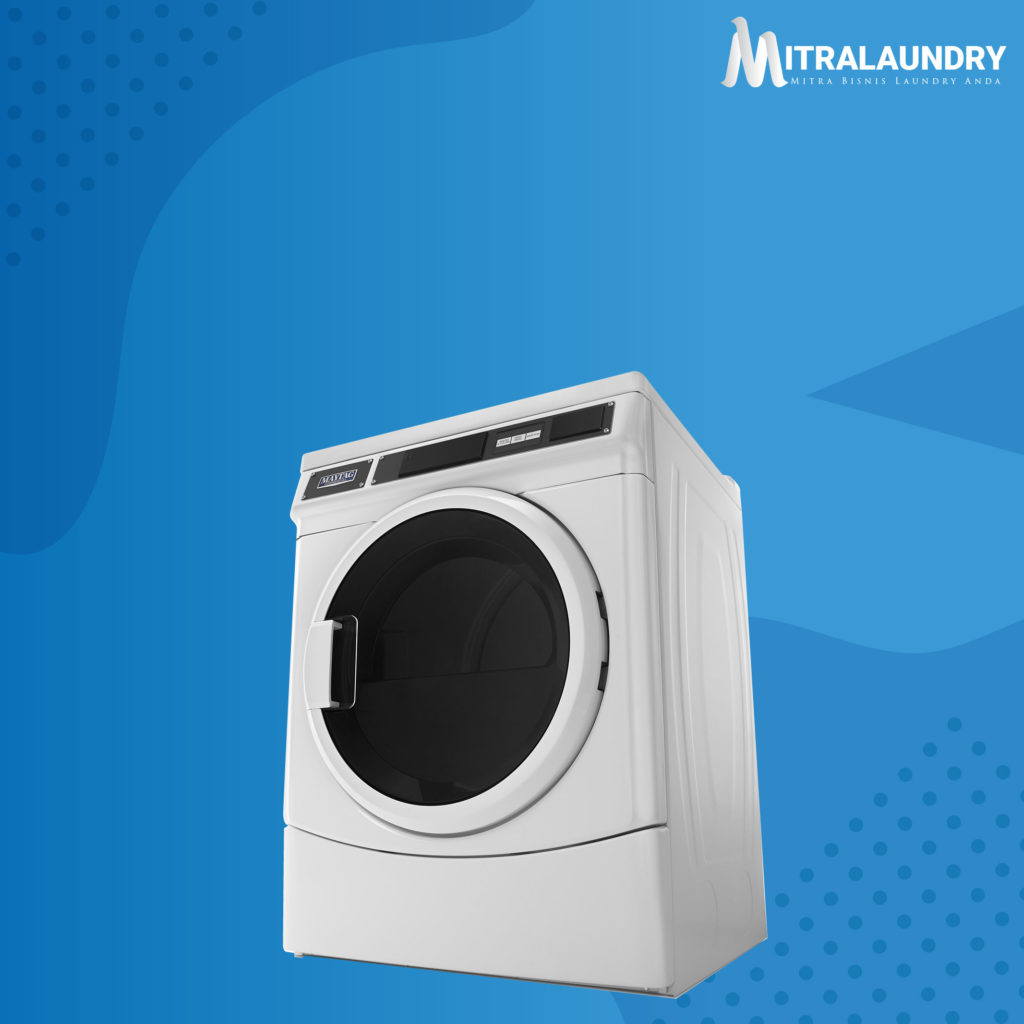

MODEL MDE/MDG28PD
MOTOR
Single-phase, thermoprotected against overload, auto-reset
HP (kw). 1/8 (.25)
CAPACITY
Cu. ft. (liters) 6.7(190)
AIRFLOW
Gas models—cfm (cmm) 230(6.5)
Electric models—cfm (cmm) 215 (6 .1)
SOUND LEVEL (EXPORT ODEL ONLY)
Sound pressure level, Lpa (BA) (Kpa: ± 10dBA) 58
TUMBLE SPEED
RPM 50 1
ELECTRICAL REQUIREMENTS
MdE model—voltage 240 V/60Hz*
MDG model—voltage 120V/60Hz
BREAKER/FUSE REQUIREMENTS—amps
MDE model 30
MDG model 15
ELECTRIC HEATING ELEMENT—watts
Domestic models 5,600
Canadian models 5,250
EXHAUST DUCT DIAMETER
In. (mm) 4 (100)* *
ELECTRONIC BURNER IGNITION
MDG model •
GAS RATING
MDG model—BTU/hr. (kcal/hr.) 24,000 (6,048)
GAS INLET
MDG model—in. 3⁄8N.P.T.
AUTOMATIC PRESSURE REGULATOR
MDG model •
ADJUSTABLE LEVELING LEGS •
APPROXIMATE WEIGHT
Crated—lbs. (kg) electric/gas 160 (73)/113 (74)
Uncrated—lbs. (kg)electric/gas 147 (67)/150 (68)
DIMENSIONS
Width—in. (mm) 27 (686)
Depth—in. (mm) 29 (737)
Height—in. (mm) 39.25 (997)
Door opening diameter—in. (mm) 18.25 (464)
ADA-COMPLIANT WITHOUT OPTIONAL PEDESTAL Yes
Optional pedestal adds: height—in. (mm) 2.75 (70)
