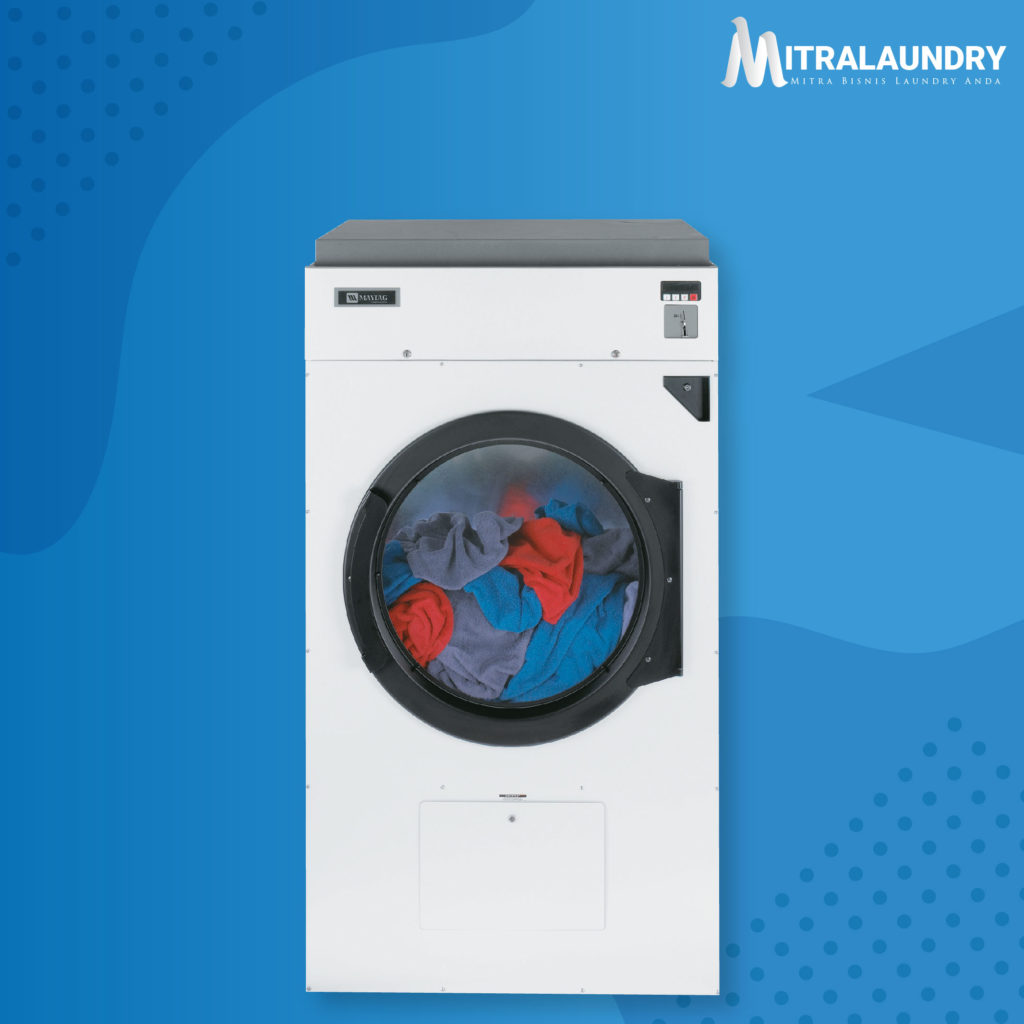

MAYTAG® MDG76PCCWW MULTI-LOAD DRYER

MAYTAG® MDG76PCCWW MULTI-LOAD DRYER

Model MDG76PCBWW
75 lb.; Microprocessor Controls; Single Phase (120 Volts); EZ FIT™ 36" Diameter, Galvanized Drum
Built-To-Last Features
  • Totally Enclosed Motor And Cabinet
  • Heavy-Duty Steel Door
For Your Operation
  • Fits Through A 36" Door
  • Dries Large Loads And Big, Bulky Items
  • Programmable Microprocessor Controls
  • Easy-Clean Lint Filter
For Your Customers
  • Fast, Efficient Drying

Produk tidak tersedia

Bagikan
LEGENDARY MAYTAG DEPENDABILITY
Maximizing your equipment investment for over a half century
Even Doorways Don't Stop Maytag offers a 75-lb. capacity EZ Fit™dryer that fits through a standard 36”-door opening, making installation simple. the wide basket paired with a shallow overall depth provides great tumbling action for more drying power in less floor space.
For Your Costumers:
• 75-Lb. Capacity
• Fast, Efficient Drying
• Dries Large Loads And Big, Bulky Items
• Extra-Large Door Opening
• Microprocessor Controls
For Your Operations:
• Fits Through A 36” Door
• Programmable Controls
• Easy-To-Change Cycle Times, Temperatures And Prices
• Easy-Clean Lint Filter BuILT-To-LAsT™
Features:
• Totally Enclosed Motor And Cabinet
• Heavy-Duty Steel Door
•5-Year Limited Warranty—All Parts Covered
DRYER SPECIFICATIONS
MODEL                                                                                                                   MDG76PC
MOTOR
Single-phase, thermoprotected against overload, auto-reset                      •
Drive motor — HP (kw)                                                                                       1 (.75)
Voltage/breaker size: 120 volts/1 PH—amps                                                  20
Airflow — cfm (cmm)                                                                                           1,200 (34)
Gas rating — BTU/hr. (kcal/hr.)                                                                        204,000 (51,408)
Gas inlet — M.N.P.T. in. (mm)                                                                           1 inlet,3⁄4F.N.P.T. (18.0)
CAPACITY
Lbs. (kg)                                                                                                                  75 (34)
Cu. Ft. (cu. m)                                                                                                       22.4 (.634)
Tumbler depth — in. (mm)                                                                                 24.88 (632)
Tumbler diameter — in. (mm)                                                                           44.5 (1130)
COLORS
White                                                                                                                       •
Stainless Steel                                                                                                        •
APPROXIMATE HIGH
Crated — lbs. (kg)                                                                                                 938 (425)
Uncrated — lbs. (kg)                                                                                            888 (403)
DIMENSIONS
A) Height — in. (mm)                                                                                          84.3 (2141)
B) Height with top removed for ease of installation — in. (mm)               70 3⁄8(178.8)
C) Width — in. (mm)                                                                                          46.19 (1173)
D) Door opening diameter — in. (mm)                                                           34 (863)
E) Floor to bottom of door — in. (mm)                                                           28 3⁄8(721)
F) Depth with door open 90 ̊ — in. (mm)                                                       72 (1830)
G) Depth including handle — in. (mm)                                                          36 (914)
H) Exhaust duct diameter — in. (mm)                                                           10 (254)
I) Floor to exhaust outlet center — in. (mm)                                                 16 3⁄4(425)
J) Side to exhaust outlet center — in. (mm                                                   10 (254)
