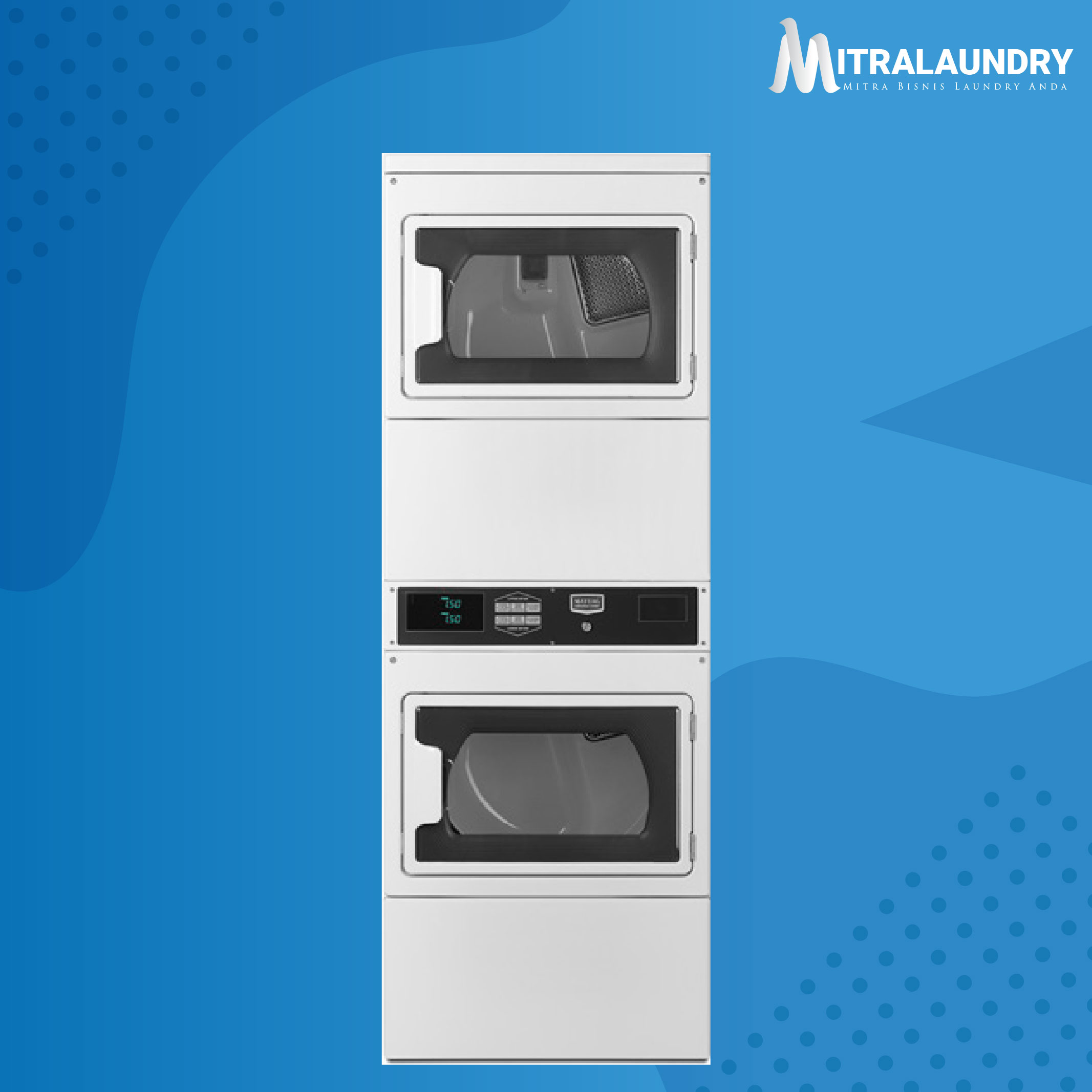

MLE/MLG27PNB MAYTAG® COMMERCIAL
SINGLE-LOAD SUPER-CAPACITY STACK DRYER\
MICROPROCESSOR NON-COIN
FEATURES :
LEGENDARY MAYTAG DEPENDABILITY
Maximizing your equipment investment for over a half-century.
TWO POCKETS IN THE SPACE OF ONE
You can potentially double your dryer income and help eliminate waiting with two dryer pockets in the same floor space as one single-load dryer.
FOR YOUR CUSTOMERS:
• Extra-Large 7.4 cu. ft. Capacity
• Easy-To-Use One-Touch Cycle Selection
• High Airflow For Better Clothes Care
• Time Remaining Display
• Optional Top-Off
• Larger Window For Convenience
• No Need To Carry Coins
FOR YOUR OPERATION:
• Advanced Computer Trac ® Controls Allow For Easy Programming
• Front Access For Easier Self Service
• Accu Trac®Audit System With Two-Way Data Communication
• Large-Capacity Metal Mesh Lint Filter
• Debit Card Compatibility
• TurboVent™Technology—Better PerformanceOn Long Vents
BUILT-TO-LAST™FEATURES:
• Four Roller Suspension With Permanently Lubricated Bearings
• Blower Guard Reduces Service Calls
• 5-Year Limited Warranty—All Parts Covered
DRYER SPECIFICATIONS
MODEL MLE/MLG27PN
MOTOR
Single-phase, thermoprotected against overload, auto-reset •
HP (kw) 1⁄3(.33)
CAPACITY
Cu. ft. (liters) 7. 4 (20 9. 5)
AIRFLOW—cfm (cmm)
Gas/Electric models—per pocket 230(6.5)/215 (6.1)
TUMBLE SPEED
RPM 50 + 1.5
ELECTRICAL REQUIREMENTS
voltage 220–240V/50 Hz
BREAKER/FUSE REQUIREMENTS—amps
Electric model (one terminal block per stack) 50
Gas models (one power cord per stack) 15
HEATER ELEMENT RATING—watts
Per pocket 4,600
EXHAUST DUCT DIAMETER
In. (mm) 4 (101.6)
ELECTRONIC BURNER IGNITION
MLG models •
GAS RATING
MLG models—BTU/hr. (kcal/hr.) 20,000 (5,040)
GAS INLET
MLG models—in. 3⁄8N.P.T.
AUTOMATIC PRESSURE REGULATOR
MLG models •
ADJUSTABLE LEVELING LEGS •
APPROXIMATE WEIGHT
Crated—lbs. (kg) 275 (124.7)
Uncrated—lbs. (kg) 2 5 0 (113 . 4)
DIMENSIONS
Width—in. (mm) 27 (686)
Depth—in. (mm) 29 (737)
Height—in. (mm) 74. 25 (1, 8 86)
