Description
Features
LEGENDARY MAYTAG DEPENDABILITY
Maximizing your equipment investment for over a half century.
ENERGY-SAVING SOLUTIONS
May tag built the first appliance ever to receive the ENERGY STAR®label. Today,we offer energy-saving laundr y solutions for all commercial laundry needs—from highly efficient ENERGY STAR®-qualified washers to the most energy-efficient dryers ever from Maytag—to help you save money and build profits.
ADVANCED CONTROLS
Includes Maytag®Accu Trac®audit system that uses a PDA to communicate with the microprocessor controls — so you can set up, monitor and audit your equipment in seconds.
CAPACITY:
• 50-Lb. Capacity
FOR YOUR CUSTOMERS:
• Owner-Programmable Single-Phase Reversing
• Fast-Drying 100% Axial Airflow System Enhances Airflow
• Extra-Large Door Opening with Dual-Pane Door Glass
• Time Remaining Digital Display
• Self-Diagnostic Microprocessor Controls
FOR YOUR OPERATION:
• Low BTU and Fast Dry
• Enhanced Insulation For Greater Efficiency
• Front Access For Easy Service
• Accu Trac®Audit System With Two-Way Data Communication
• Large-Capacity Lint Drawer BUILT-TO-LAST™
FEATURES:
• Maytag®Exclusive Dry Fire Suppression System
•5-Year Limited Warranty—All Parts Covered
• Heavy-Duty Motors
• Permanently Lubricated Bearings
• Four-Point Roller Support System
5-YEAR LIMITED WARRANTY
ALL PARTS COVERED
For a period from the date of original purchase through the time listed
above, the designated par ts that fail in normal commercial use will be
repaired or replaced free of charge for the par t itself, with the owner
paying all other costs, including labor, transpor tation and customs dut y.
Chemical damage is excluded from all warranty coverage. See complete
warrant y for details.

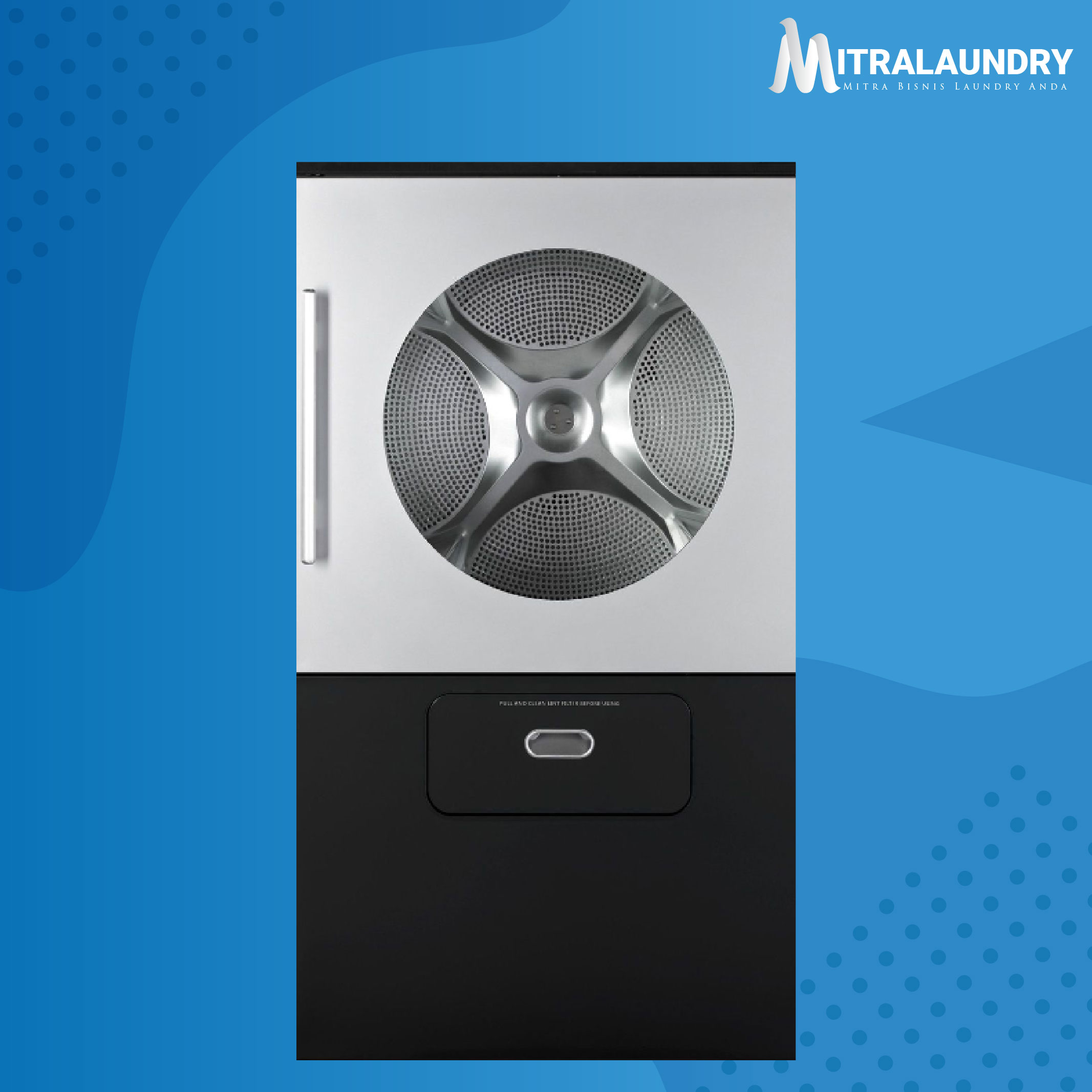

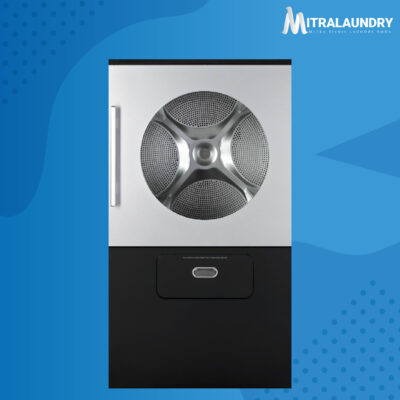

DRYER SPECIFICATIONS MODEL MDG52PD
CAPACITY
Lbs. (kg) 50 (22.68)
Cu. ft. (cu. m) 16.02 (.453)
TUMBLER
Diameter — in. (mm) 37 (940)
Depth — in. (mm) 25.75 (654)
MOTOR
Single-phase, thermoprotected against overload, auto-reset
•HP (kw) Tumbler/Blower 75 (.56) / .50 (.37)
Tumble Speed — rpm 40 + 1.5
AIRFLOW
Cfm (cmm) 600 (17.00)
GAS RATING
BTU/hr. (kcal/hr.) 110,000 (27,720)
GAS INLET
M.N.P.T. in. (mm) 1 inlet, 0.50 (12.7)
VOLTAGE/BREAKER/FUSE REQUIREMENTS
Volts (Hz)/Phase 120V (60)
Amps 25
Export Models — options available 220 – 415V/1PH or 3PH
COLOR
White •
Stainless Steel •
APPROXIMATE WEIGHT
Crated — lbs. (kg) 640 (290)
Uncrated — lbs. (kg) 610 (277)
DIMENSIONS
Height — in. (mm) 70.5 (1791)
Width — in. (mm) 38.25 (972)
Depth — in. (mm) 40.125 (1019)
Exhaust duct diameter — in. (mm) 8 (203)
Door opening diameter — in. (mm) 27.375
